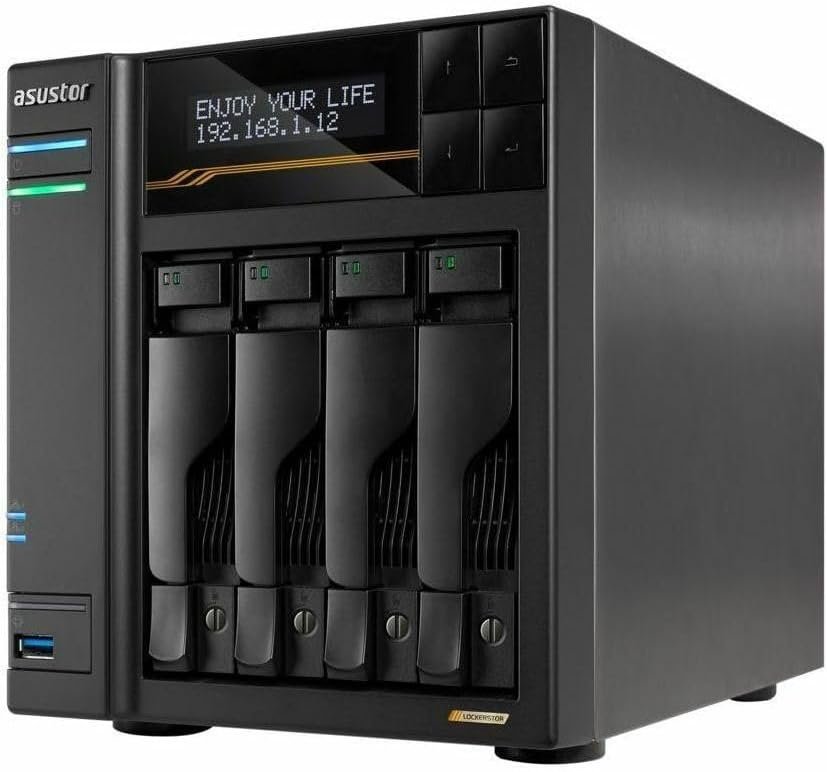

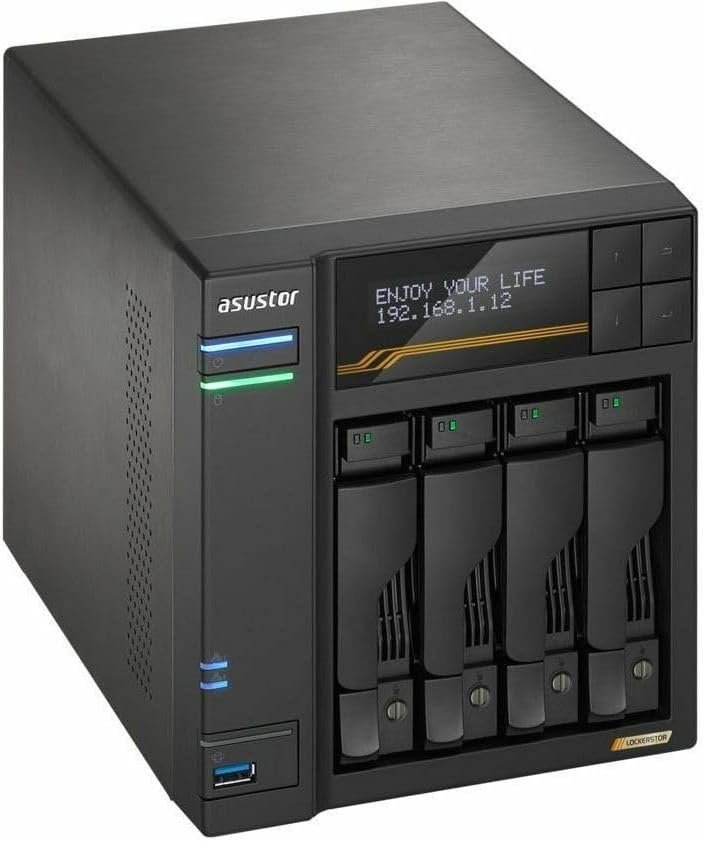

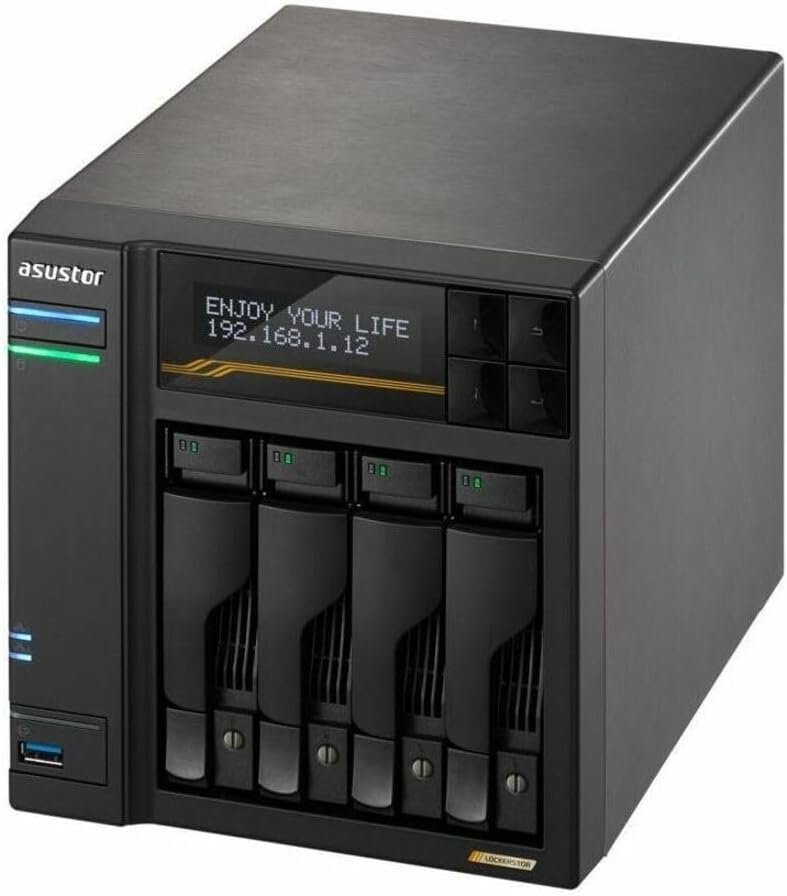

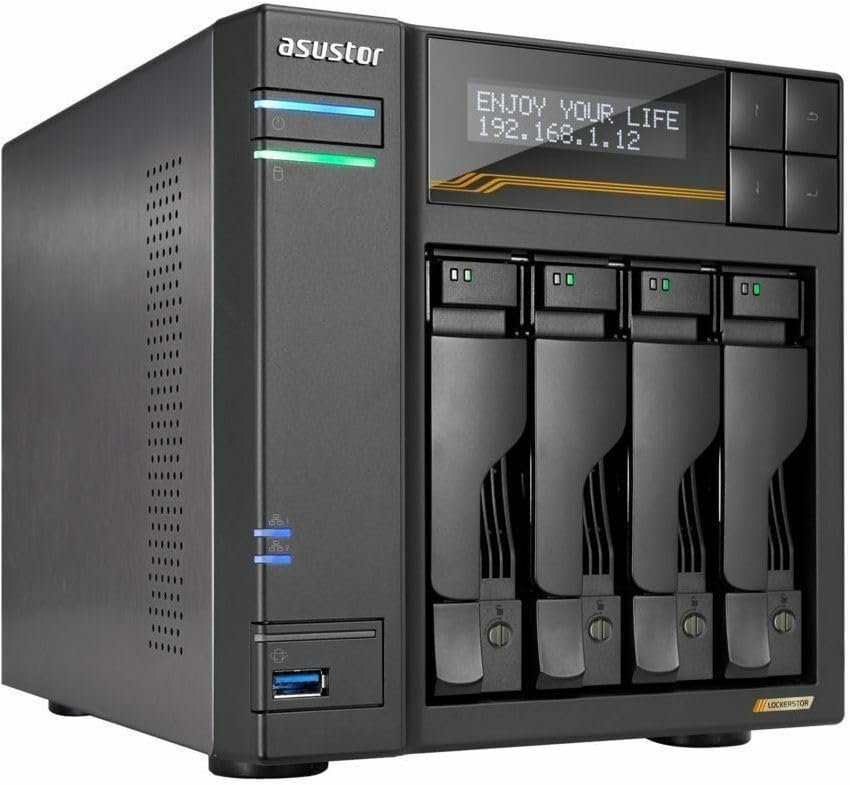

Asustor Lockerstor 4 Gen3 (AS6804T) 4-Bay Enterprise NAS Storage
The Asustor Lockerstor 4 Gen3 (AS6804T) is an elite 4-bay flagship NAS server designed for demanding content creators, studio environments, and enterprise power users. Powered by an AMD Ryzen Embedded Quad-Core processor (2.3 GHz base, up to 3.8 GHz boost) paired with 16GB of server-grade ECC DDR5 RAM, it delivers desktop-class performance with error-correcting memory stability. Network connectivity is led by dual 10-Gigabit Ethernet (10GbE) and dual 5-Gigabit Ethernet (5GbE) ports supporting high-speed multi-gigabit aggregation. Equipped with 4 x tool-free M.2 PCIe 4.0 NVMe SSD slots for caching or storage pools, along with dual 40Gbps USB4 Type-C ports (Thunderbolt 3/4 compatible), it offers unmatched throughput for 4K/8K video editing workflows and rapid data backup.
Key Features & Highlights
- AMD Ryzen Embedded Quad-Core CPU: Powerful AMD Ryzen processor (up to 3.8 GHz boost) delivers high-efficiency multitasking and desktop-grade speeds.
- 16GB Server-Grade ECC DDR5 RAM: Error-Correcting Code (ECC) DDR5 memory detects and corrects data corruption for extreme system stability.
- Quad M.2 PCIe 4.0 NVMe Slots: Features 4 x tool-free M.2 PCIe 4.0 SSD slots for high-speed caching or all-flash storage volumes.
- Dual 10GbE & Dual 5GbE Networking: Built-in 2 x 10GbE and 2 x 5GbE RJ45 ports ensure ultra-fast network performance and zero-downtime failover.
- Dual 40Gbps USB4 Type-C Ports: High-speed USB4 connectivity (compatible with Thunderbolt 3/4) supports ultra-fast external transfers and direct NAS-to-NAS syncing.
- PCIe 4.0 Doubled Performance: Maximizes IOPS for heavy random read/write applications like 3D rendering and video production.
- Comprehensive Ransomware Defense: Driven by Asustor ADM OS with Btrfs snapshot center, MyArchive cold storage support, and multi-cloud sync tools.
Detailed Product Specifications
1. Hardware Architecture & Performance
| Attribute | Specification Details |
|---|---|
| Brand / Manufacturer | Asustor |
| Model Name & Part Number | Lockerstor 4 Gen3 / AS6804T |
| CPU Architecture & Speed | AMD Ryzen Embedded Quad-Core (2.3 GHz Base / 3.8 GHz Boost) |
| System Memory (RAM) | 16 GB ECC DDR5 Memory |
| Drive Bays (SATA) | 4 × 3.5″ / 2.5″ SATA III HDD/SSD Trays (Diskless) |
| NVMe M.2 SSD Slots | 4 × M.2 PCIe 4.0 NVMe SSD Slots (Tool-Free Installation) |
| Supported RAID Modes | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, Single, JBOD |
2. Connectivity, Physical & Expansion Specs
| Attribute | Specification Details |
|---|---|

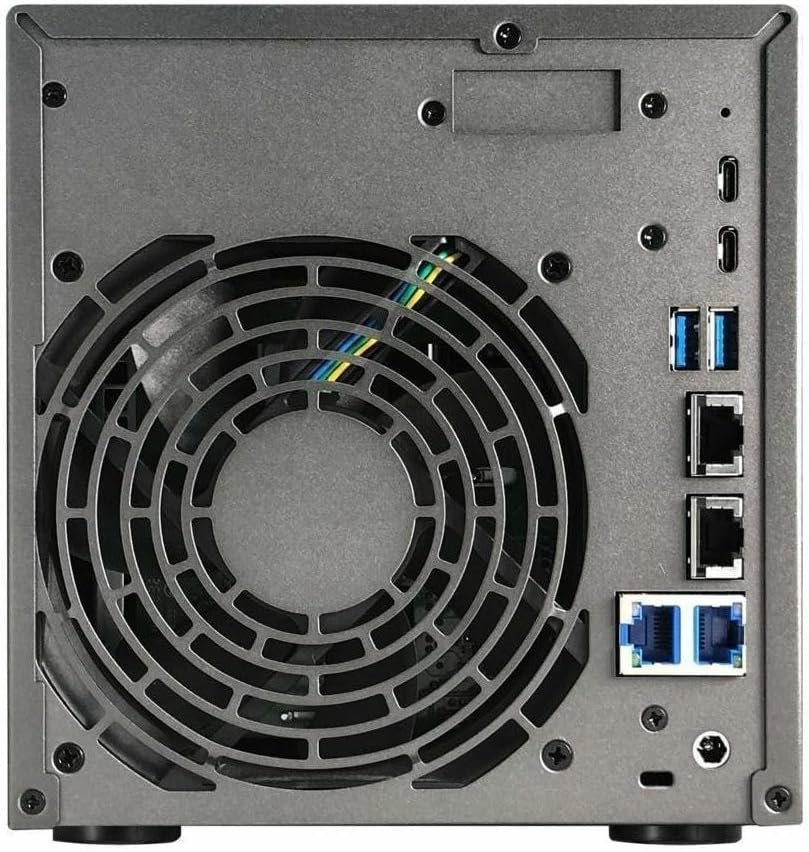

| High-Speed Ethernet Ports | 2 × 10-Gigabit (10GbE) + 2 × 5-Gigabit (5GbE) RJ45 Ports |
| USB4 / Thunderbolt Ports | 2 × USB4 Type-C (Up to 40Gbps, Thunderbolt 3/4 Compatible) |
| Additional USB Connectivity | USB 3.2 Gen 2 High-Speed Expansion Ports |
| Operating System | ASUSTOR Data Master (ADM) OS |
| Target Applications | 4K/8K Video Editing, Virtualization, Enterprise Storage |
| UPC / GTIN | 887372001657 |
Package Contents
- 1 x Asustor Lockerstor 4 Gen3 AS6804T 4-Bay NAS Unit
- 1 x Power Cord & Power Adapter
- 2 x RJ-45 10GbE / 5GbE LAN Cables
- 1 x Screws Pack for 3.5″ and 2.5″ Drives
- 1 x Quick Installation Guide
