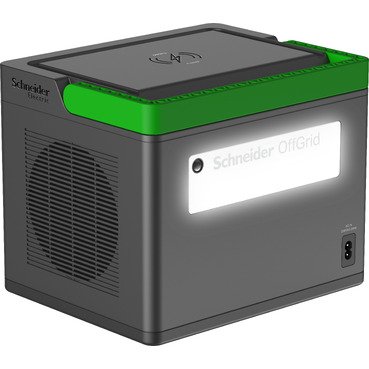

Schneider OffGrid Portable Power Station 730 (738Wh Lithium-Ion)
The Schneider OffGrid Portable Power Station 730 (738Wh) is built to deliver high-capacity, dependable portable power for heavy-duty outdoor applications, camping trips, caravans, and residential emergency backup. Weighing 6.4 kg (14.1 lbs), this compact power hub provides continuous pure sine wave AC electricity to safely run high-demand electronics, laptop workstations, power tools, medical equipment, mini-refrigerators, and lighting setups during blackouts or off-grid travel.

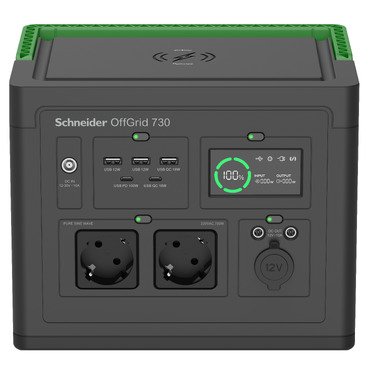

Outfitted with an expansive 10-port output suite, the OffGrid 730 includes 2 Pure Sine Wave Schuko AC Outlets (700W continuous / 995W max configurable power), 1 high-speed 100W USB-C Power Delivery port, 1 Quick Charge 18W USB-C port, 1 Quick Charge 18W USB-A port, 2 standard USB-A ports (12W), 2 DC5521 barrel connectors (12V 5A), a 12V car cigarette lighter port (120W), and a top-mounted 15W wireless charging pad. Built using sustainable principles, its robust casing comprises 60% post-consumer recycled plastic packaged in eco-conscious, plastic-free materials.
Recharging is straightforward with 3 versatile input options: Direct AC Wall Cable (~9 hours to full charge), Solar Input (down to ~4.5 hours via optional 200W solar panel accessory), or 12V Car Cable Charging.
Key Features & Technical Highlights
- High Energy Storage: 738Wh Lithium-Ion battery pack engineered for 500+ charge cycles down to 80% remaining capacity.
- Dual Pure Sine Wave AC Outlets: 2 Schuko CEE 7 outlets delivering clean 230V AC (700W continuous, 50 Hz) power to run sensitive loads.
- 100W Ultra-Fast USB-C PD: Powerful 100W USB-C Power Delivery output to charge high-performance laptops and workstations directly.
- 10-Port Output Versatility: Includes 100W USB-C PD, 18W USB-C QC, 18W USB-A QC, 2 USB-A, 2 DC5521 ports, 12V Car Port, and 15W Wireless Charging.
- 3 Recharging Capabilities: Flexible recharging via Direct AC Wall Cable (~9 hours), 200W Solar Panel (~4.5 hours), or 12V Car Adapter.
- Sustainable Design: Enclosure made with 60% post-consumer recycled plastic and shipped in 100% plastic-free packaging.
- Complete Out-of-the-Box Kit: Includes AC power cable, 12V car charging cable, and detailed user instruction manual.
Detailed Product Specifications
1. Technical Overview & Electrical Performance
| Attribute | Specification Details |
|---|---|
| Brand / Range | Schneider Electric / Schneider OffGrid |
| Product / Component Type | Portable Power Station / Off-Grid Power Supply |
| Battery Chemistry | Lithium-Ion (Li-Ion) |
| Battery Energy Capacity | 738 Wh (738 W.h) | 500+ Cycles to 80% Capacity |
| AC Continuous / Peak Power | 700 Watts Continuous | 995 Watts Max Configurable Power |
| AC Output Waveform | Pure Sine Wave (230V AC, 50 Hz) |
| Recharge Time (Wall / Solar) | ~9 Hours (Wall AC) | ~4.5 Hours (Optional 200W Solar Panel) |
| Primary Applications | Caravan, Camping, Outdoor, Home Emergency Power Supply |
2. Input & Output Connectors Detail
| Input / Output Type | Port Configuration & Electrical Ratings |
|---|---|
| DC Power Input Port | (1) 12…30 V DC, 10 A (200 W Max) |
| AC Power Input Port | (1) 195…265 V AC, 0.65 A Direct Wall Charging |
| AC Power Outlets | (2) SCHUKO CEE 7 Outlets, 230 V AC (700 W Continuous) 50 Hz |
| Standard USB-A Output Ports | (2) USB Type-A Ports, 5 V DC, 2.4 A (12 W Max) |
| Quick Charge USB-A Port | (1) USB Type-A QC, 5…12 V DC, 3 A (18 W Max) |
| USB-C Output Ports | (1) USB-C PD (5…20 V DC, 5 A, 100 W) | (1) USB-C QC (5…12 V DC, 3 A, 18 W) |
| DC Barrel Output Ports | (2) DC5521 Outlets, 12 V DC, 5 A |
| Car Cigarette Lighter Port | (1) Car Socket Port, 12 V DC, 10 A (120 W Max) |
| Wireless Charging Pad | (1) Top Wireless Charging Area, DC (15 W Max) |
3. Physical, Environmental & Packaging Specs
| Attribute | Specification Details |
|---|---|
| Dimensions (H x W x D) | 250 mm x 200 mm x 204 mm (9.84″ x 7.87″ x 8.03″) |
| Net Weight | 6.4 kg (14.11 lbs) |
| Color / Finish | Black and Green |
| IP Degree of Protection | IP40 Rating |
| Operational Temperature Ranges | Charging: 0…40 °C | Discharging: -10…40 °C | Storage: -20…70 °C |
| Product Certifications | CE Certified |
| Package 1 Type & Dimensions | PCE (1 Unit) | 32.7 cm H x 23.8 cm W x 32.2 cm L |
| Package 1 Total Weight | 7.1 kg |
| Total Carbon Footprint | 288 kg CO2 eq. (Manufacturing: 166 kg | Distribution: 19 kg) |
| Manufacturer Warranty | 24 Months (2 Years) |
Package Contents
- 1 x Schneider OffGrid Portable Power Station 730 (738Wh)
- 1 x AC Wall Power Cable
- 1 x 12V Car Charging Cable
- 1 x User Manual & Safety Guide
