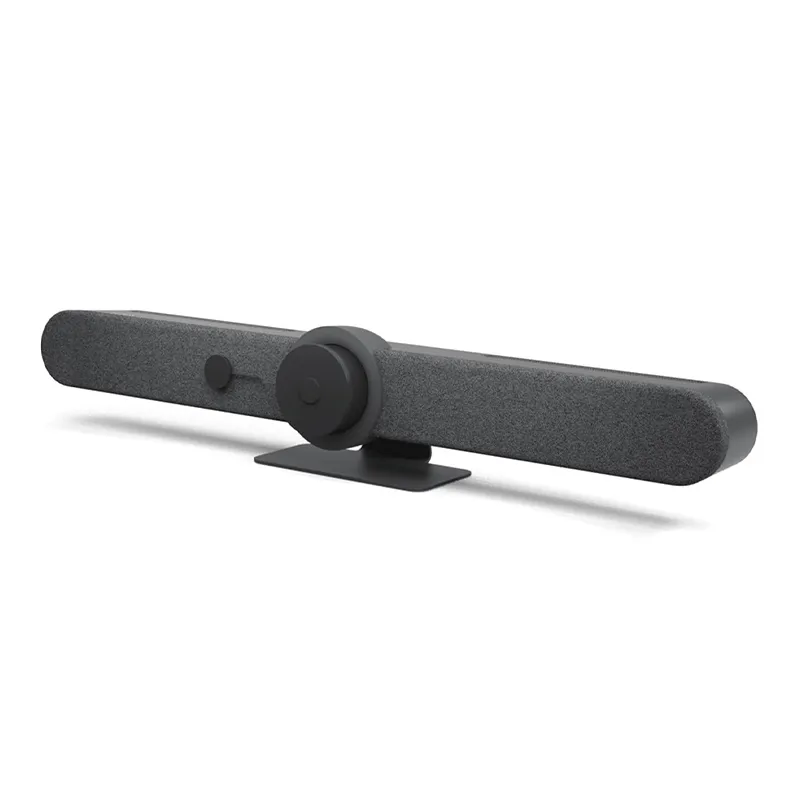

Logitech Rally Bar All In One Video Conference Cam 960-001312

• Logitech Rally Bar

All In One Video Conference Cam

SEE WHAT YOU’VE BEEN MISSING:

• Yes, Logitech Rally Bar is equipped with a dual camera system and RightSight 2 auto-framing technology which allows for a more inclusive video conferencing experience by welcoming far-flung conversation participants.
• The camera system allows for multiple views such as speaker view which highlight the active speaker, group view which takes a picture of everyone in the room or combined both for an immersive and engaging experience.
• This makes it easy for everyone to feel included and seen during video conferences regardless of their location.

LOOKS BRILLIANT:

• Yes, Logitech Rally Bar All In One Video Conference Cam system is innovative and equipped with a dual camera system with optical zoom and AI viewfinder.
• The camera is designed to deliver smooth cinematic video quality in medium to large rooms.
• The optical zoom allows for close-up shots of presenters or whiteboards, while the AI viewfinder tracks and frames the active speaker, ensuring that they are always in focus and visible to the remote participants.
• It is ideal for medium to large meeting rooms where it can provide a more engaging and immersive video conferencing experience.

Logitech Rally Bar

SOUNDS AWESOME:

• Yes, Logitech Rally Bar All In One Video Conference Cam is equipped with advanced audio engineering that delivers powerful, room-filling sound, so you can hear everything clearly.
• The audio system is designed to provide clear and natural sound that fills the entire room, making sure that everyone can hear the conversation regardless of their position in the room.
• This will help to create a more inclusive and engaging meeting experience.
• Additionally, the Rally Bar has an array of microphone and speaker options to fit in any room and any configuration.
• The system is also compatible with Logitech Tap or with the Logitech SmartDock for a more seamless integration with your video conferencing setup.

Logitech Rally Bar

AI Sound Optimization:

• Yes, Logitech Rally Bar All In One Video Conference Cam is equipped with AI-powered RightSound technology that improves over time.
• The technology automatically adjusts soft and loud sound levels, while suppressing unwanted noise, providing a clear and natural sound.
• The technology uses artificial intelligence to constantly analyze the audio in the room, ensuring that all voices are heard clearly and that background noise, such as typing on a keyboard, is suppressed.
• This feature will ensure that all the participants can hear each other clearly and can communicate effectively.
• With the technology constantly learning, the audio quality will improve over time making it more efficient.

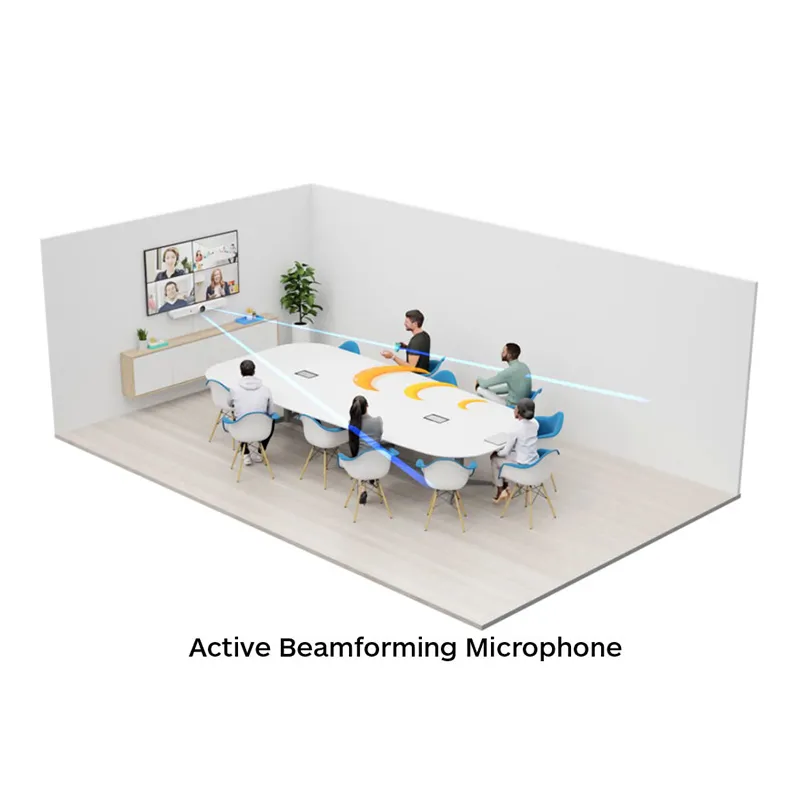

Adaptive Beamforming:

• Yes, Logitech Rally Bar All In One Video Conference Cam is equipped with highly accurate beamforming microphones that focus on the active speaker, ensuring that their voice is heard clearly.
• Beamforming is a technique used in microphone arrays to focus on a specific sound source, and reject unwanted noise.
• This technology uses multiple microphones to capture sound from different angles, and then uses complex algorithms to identify the main speaker and isolate their voice.
• This makes sure that the active speaker is heard clearly even when there is background noise, ensuring a more productive and efficient meeting.

Logitech Rally Bar

EXPAND THE CONVERSATION:

• Yes, the Logitech Rally Bar All In One Video Conference Cam is designed to accommodate large spaces.
• It comes with a microphone unit that has a range of up to 23 feet (7 meters) out of the box, making it ideal for medium to large rooms. And if you need to cover a larger area, you can add up to four mic pods to the Rally Bar.
• Each mic pod is designed to work with the Rally Bar to expand its range and improve the audio quality in large spaces.
• The mic pods are placed strategically in the room to pick up sound from all directions, providing superior sound coverage and clarity throughout the room.
• This makes it an ideal solution for large meeting rooms, conference halls, and other large spaces where clear communication is critical.

Logitech Rally Bar

COMPATIBLE WITH YOUR PLATFORM OF CHOICE:

Logitech Rally Bar All In One Video Conference Cam start meetings with one touch and without difficulty join Rally Bar to pre-configured room solutions.

DESIGNED FOR DEPLOYMENT AT SCALE:

Appliance Mode:

Run supported video conferencing apps like Microsoft teams® and Zoom® Rooms without delay on your device without a laptop or laptop.

USB Mode:

Connects through USB to nearly any laptop or Mac with no extra software program required.

Cable Management:

Logitech Rally Bar All In One Video Conference Cam  cozy cable control and minimum cabling make sure a easy and secure set up.

Mounting Options:

speedy and easily install Rally Bar to any medium to big area with more than one mounting alternatives.

SIMPLE TO MANAGE:

• Effortlessly control your Logitech video collaboration devices with Logitech Sync.
• Reveal room repute, submit updates, and trade settings from a single cloud platform.
• And with Sync Insights, you can see how your meeting area is being used through the years.

Insights:

Monitoring:

Management:

Logitech rally bar all-in-one specs:

Dimensions

• Height: 164 mm
• Width: 910 mm
• Depth: 130.5 mm
• Lens Depth: 28.8 mm
• Weight: 7.08 kg

Technical Specifications

• Microsoft Teams Rooms on Android 1For medium sized rooms
• Microsoft Teams Rooms on Windows 2For medium sized rooms

Logitech rally bar all-in-one General Specifications

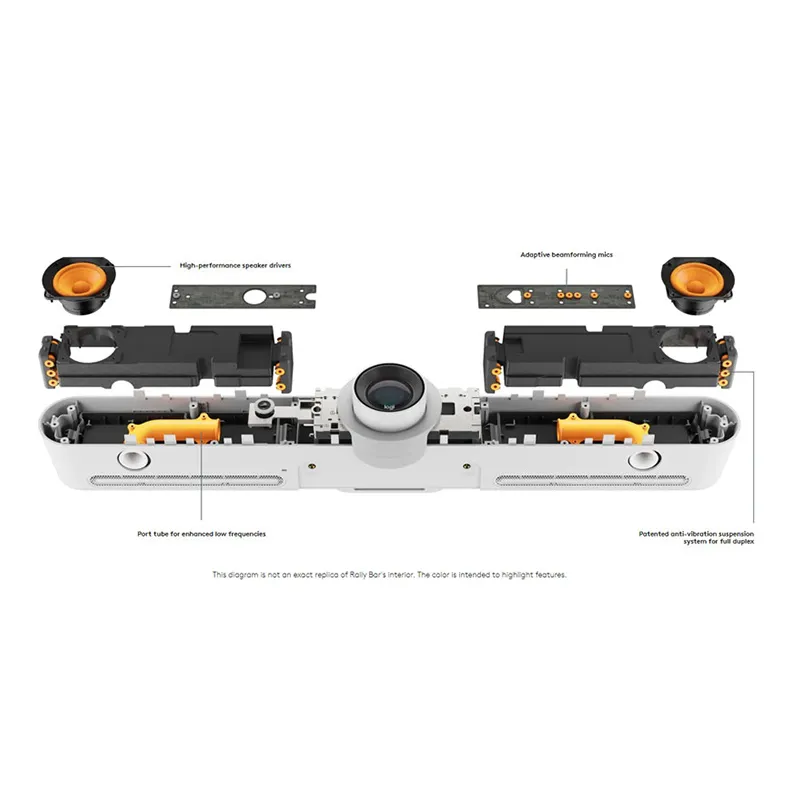

• Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table
• stand, Logitech CollabOS platform
• Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera
• shake and audio interference
• Device Management: Logitech Sync
• Displays Supported: 2
• Display Resolution: Up to 1080p
• Network Protocol Support: IPv4, IPv6
• Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

• Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
• Pan: Motorized ±25°
• Tilt: Motorized ±15°
• Zoom: 15X HD zoom (5X optical and 3X digital)
• Diagonal Field of View: 90°
• Horizontal Field of View: 82.1°
• Vertical Field of View: 52.2°
• Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical

Speakers

• Drivers: 2x 70 mm
• Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
• Rated Power: 8W
• THD: 1kHz < 2% at 1W
• Speaker Sampling Rate: 48 kHz
• Impedance: 4 Ohms

Logitech rally bar all-in-one Microphones

• Frequency Response: 90Hz – 16kHz
• Sensitivity: >-36dBFS +/-1 dB @ 1Pa
• Microphone data rate output: 48KHz
• Pickup Range: Up to 7 m
• Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
• Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
• Noise suppression: AI based de-noising algorithm
• Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

RightSense Technologies

• RightLight: Renders natural skin tones for each participant
• RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
• RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
• Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences.

Interfaces

• HDMI Out: 2 (up to 1080p)
• HDMI In: 1
• USB: 3x Type A, 1x Type C
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac
• External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
• Remote Control: Bluetooth Low Energy

Power & Cables

• Power supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 19V, 4.74A
• Power Supply Dimensions: 127 mm x 51 mm x 30 mm
• DC Cable: 1.5 m
• AC Cable: 1 m
• HDMI 1.4 Cable: 2 m
• USB A to USB C 3.0 Cable: 2.2 m

Environmental

• Operating Temperature: 0 to 40°C
• Storage Temperature: -40 to 70 °C
• Humidity: 10 to 95%
• BTU/hr: 57 idle, 64 in meeting

Logitech rally bar all-in-one Security

• Full Disk Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Device Access: Authenticated using API
• Key Protection: Arm TrustZone, RPMP

Accessories

• Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
• Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
• Connectivity: Logitech Strong USB (10m, 25m, 45m)
• Touch Controller: Logitech Tap and Tap IP
