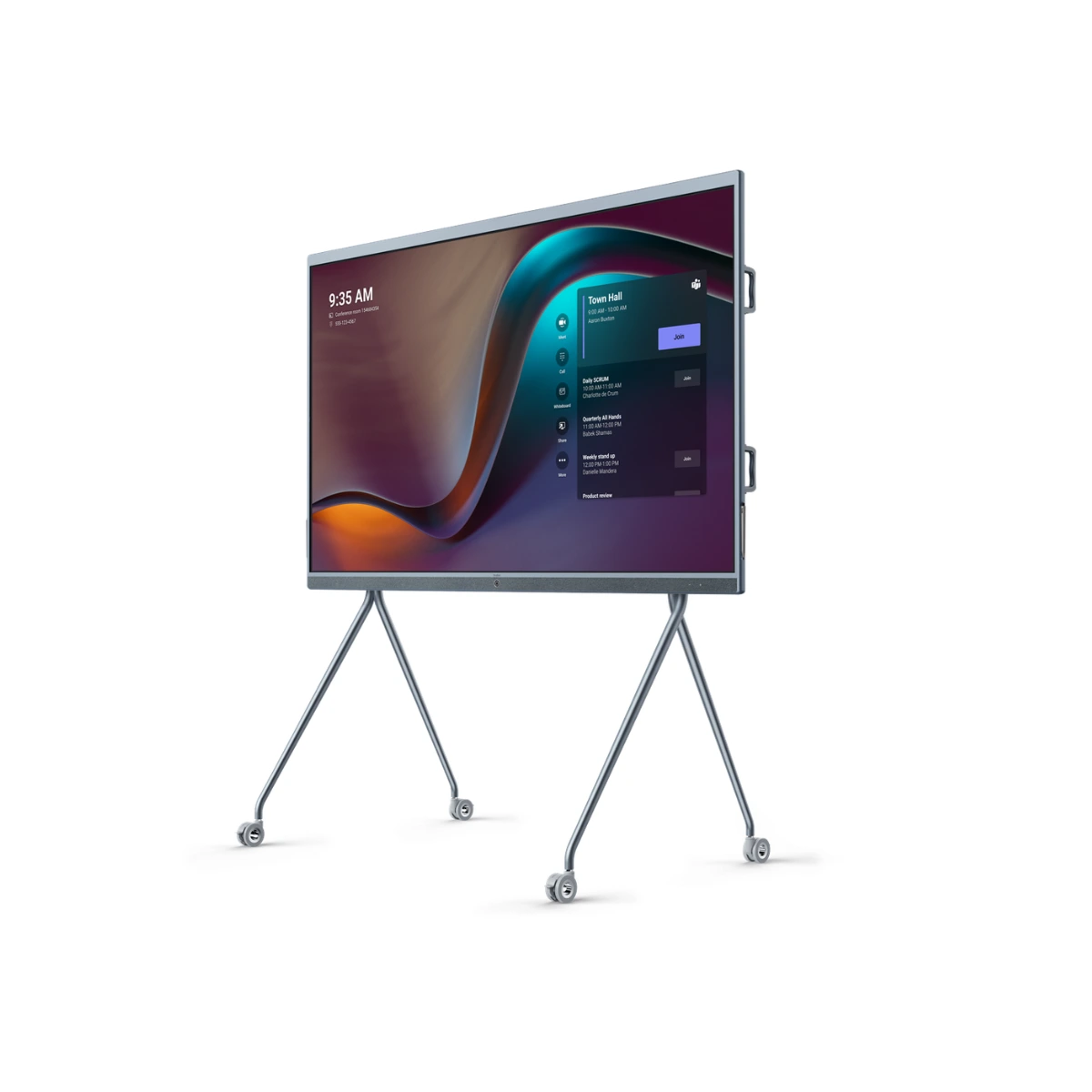

Yealink MeetingBoard 65 – Complete All-in-One Smart Video Conferencing Solution
The Yealink MeetingBoard 65 transforms any room into a modern, high-efficiency hybrid meeting space. Integrating an interactive 65-inch 4K touch display, a revolutionary triple 50 MP AI camera system, studio-quality 16-microphone audio array, and full-duplex stereo sound, it combines video conferencing, wireless content sharing, and digital whiteboarding into a single sleek device. With a 10-minute setup, flexible OS options (Android 13.0 or Windows OPS), and enterprise-grade security, it provides an unbeatable collaboration experience.
Key Features & Highlights
- All-in-One Simplicity: Combines display, camera, mic, speakers, and whiteboard into one device, eliminating cable clutter and complex wiring.
- Triple 50 MP AI Camera System: Features high-resolution telephoto and wide-angle lenses to ensure crisp optics and clear framing for every seat in the room.
- Advanced AI Framing & Tracking: Includes Auto Framing, Speaker Tracking, Picture-in-Picture (PIP / IntelliFocus), and Video Fence to focus automatically on active talkers.
- Pro Audio Performance: 16-MEMS beamforming microphone array with full-duplex 12-meter pickup range and 36W stereo speakers with AI noise suppression and echo cancellation.
- Natural 4K Multi-Touch Whiteboarding: 20-point infrared touch with an ultra-fast 21ms response time, 1.5mm touch height, and 4-level stylus support for intuitive writing.
- Flexible Dual OS Architecture: Runs on Android 13.0 natively, with an integrated Windows OPS slot to seamlessly switch operating environments based on enterprise needs.
- Includes Bonus Cloud Management: Comes with 1 Year of Yealink YMCS Room Professional Cloud Management (Worth $65 – Valid 31/07/26 to 30/09/26, NZ Only) for easy remote device management and batch deployment.
Detailed Product Specifications
1. System Architecture & Processing
| Parameter | Specification |
|---|---|
| Operating System | Android 13.0 (Supports Windows via optional OPS module) |
| CPU Architecture | Octa-core (4 Cores @ 2.2 GHz + 4 Cores @ 2.0 GHz) |
| AI Computing Power | 8.8 TFLOPS |
| System Memory & Storage | 8 GB RAM | 64 GB Flash Storage |
| Device Wake-up | Integrated Human Motion Sensor for automatic wake-up |
2. Display & Screen Performance
| Parameter | Specification |
|---|---|
| Screen Size | 65 Inch Anti-Glare Panel (Also available in 75″ & 86″ models) |
| Resolution & Refresh Rate | 4K Ultra HD (3840 x 2160) @ 60 Hz |
| Color Gamut & Depth | 72% NTSC / 99% sRGB | 1.07 Billion Colors (10-bit) |
| Contrast Ratio & Brightness | 1200:1 Contrast Ratio | 400 cd/m² Max Brightness |
| Viewing Angle | 178° Horizontal / 178° Vertical ultra-wide viewing angles |
3. Interactive Touch & Whiteboarding
| Parameter | Specification |
|---|---|
| Touch Technology | Infrared (IR) Multi-Touch Sensing |
| Touch Points & Accuracy | 20 Simultaneous Touch Points | ±1 mm Accuracy |
| Touch Latency & Height | Ultra-low 21 ms Latency (Yealink Whiteboard) | 1.5 mm Touch Height |
| Stylus Support | Four-level stylus precision supported |
4. Triple Camera System & AI Optics
| Parameter | Specification |
|---|---|
| Camera Resolution | Built-in Triple 50 MP Camera System (up to 3840 x 2160 @ 60Hz) |
| Image Sensors | 2x 1/2″ Sony Sensors + 1x 1/1.56″ Sony Sensor |
| Field of View & Zoom | Wide-Angle HFOV 98.2° | 4x Digital Zoom | ePTZ (Electronic Pan-Tilt) |
| Exposure & Balance Control | Auto Exposure | Auto / Manual / ATW White Balance | 9 Camera Presets |
| Privacy & Dynamic Range | Electric Privacy Shutter | Supported WDR & HDR Imaging |
| Smart AI Features | Auto Framing, Speaker Tracking, Picture-in-Picture (PIP), IntelliFocus, Video Fence |
| Optional Optical Camera Expansion | Supports MB-12X Pro Camera Module (8MP Sony Sensor, 12x Optical Zoom, 90° FOV, ±100° Pan, 0°/-90° Tilt) |
5. Audio System (Microphones & Speakers)
| Parameter | Specification |
|---|---|
| Microphone Array | Built-in 16 MEMS Directional Beamforming Microphone Array |
| Pickup Range & Type | 12 Meters (39 feet) Full-Duplex Far-Field Voice Pickup |
| Microphone Specs | 70dB SNR @1KHz | Sensitivity: -38±1dBV/Pa | Frequency: 20Hz~20KHz | 24-bit / 48KHz |
| Speaker Output Power | Built-in Stereo Speakers | 30W Rated Power / 36W Max Power |
| Audio Technologies | Acoustic Echo Cancellation (AEC), Noise Suppression, Dereverberation, Lip Sync Detection, Auto Gain Control (AGC), CNG/PLC/AJB |
| Audio Expansion | Supports RCA Audio Input and Output ports |
6. Video, Content Sharing & Codecs
| Parameter | Specification |
|---|---|
| Video Resolution | Lens up to 4K 30fps | Content Sharing up to 4K 60fps (Local HDMI) / 4K 15fps (In Meeting) |
| Bandwidth Efficiency (H.265) | 4K30fps ≥ 2Mbps | 1080P30fps ≥ 512Kbps | 720P30fps ≥ 384Kbps |
| Wired Content Sharing | Direct HDMI IN | Yealink VCH51 Sharing Box |
| Wireless Content Sharing | AirPlay | Miracast | Wireless Presentation Pod (non-US) |
| Video Codecs | H.264 SVC, H.264 High Profile, H.264 |
7. Network, Connectivity & Enterprise Security
| Parameter | Specification |
|---|---|
| Wireless Connectivity | Wi-Fi 6 (802.11a/b/g/n/ac/ax 2.4G/5G Dual-Band 2×2 MIMO) | Bluetooth 5.1 |
| Network Protocols | TCP/IP (IPv4/IPv6), DHCP / Static IP, QoS (VLAN, 802.1P/Q, Diffserv) |
| Encryption & Protocols | H.235, TLS, SRTP Media Encryption, AES-256 Encryption, 802.1X, LLDP-MED, OpenVPN |
| Security Features | Built-in Security Certificates, Network/Protocol Attack Protection, Meeting Passwords, Whitelists & Blacklists |
| Management Tools | Yealink Management Cloud Service (YMCS), SNMP Protocol, Web/Device/Platform/USB Updates, Batch Deployment Tool |
8. Hardware Interfaces & Power Requirements
| Interface / Factor | Details |
|---|---|
| Video Interfaces | 1 x HDMI Output (CEC Supported) | 1 x HDMI Input |
| Audio Interfaces | 1 Pair RCA Line Input | 1 Pair RCA Line Output |
| USB & Network Ports | 3 x USB-A 2.0 | 1 x USB-B Touch Output | 2 x 10/100/1000Mbps Adaptive Ethernet Ports |
| Expansion Slots | 2 x RJ45 VCH Ports (Mics/Sharing Box) | 1 x Windows OPS Slot | 1 x Top Pluggable Camera Slot |
| Power Consumption | AC 100-240V ~ 50/60Hz | Typical: 141W | Max: 243W (USB Output: 5V~0.5A) |
| Mounting Options | Wall-Mounted, Wall-Stand, or Floor-Stand Installation (MB-WallMount sold separately) |
| Operating Environment | Temp: 0 to 40°C | Humidity: 5 to 95% | Storage Temp: -30 to 70°C |
Package Contents
- 1 x Yealink MeetingBoard 65 Pro Main Unit
- 4 x High-Precision Touch Stylus Pens
- 1 x 3-Meter AC Power Cable
- 1 x 3-Meter CAT5E Unshielded Network Cable
- 1 x Complete Cable Pack & 3 x Cable Ties
- 1 x Quick Start Guide
