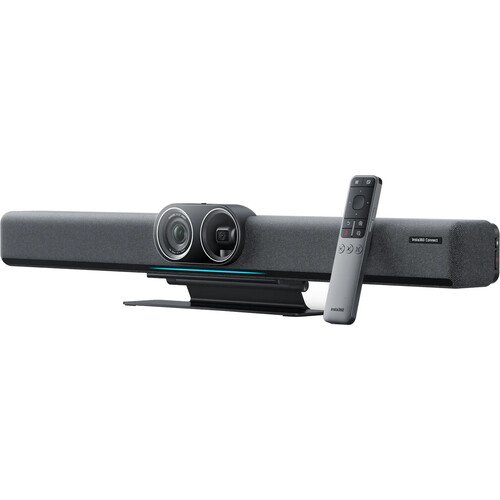

Insta360 Connect Dual 4K Camera AI Video Bar for Conference Rooms
The Insta360 Connect Dual 4K Camera AI Video Bar is an advanced all-in-one video conferencing solution engineered specifically for small- and medium-sized conference spaces and boardrooms. Driven by an AI-powered dual-camera system—featuring a 110° wide-angle lens and a 40° telephoto lens paired with 1/3″-type 48MP CMOS sensors—it captures crisp UHD 4K video at 30 fps with intelligent participant tracking, 3x digital zoom, 70° pan, and 40° tilt capabilities. Equipped with an impressive 14-microphone array offering a 33-foot (10.1 m) pickup range, echo and noise cancellation, and a powerful 20W built-in speaker, it delivers crystal-clear audio. Complete with dual HDMI outputs, USB-C 3.0 connectivity, Wi-Fi, Bluetooth 5.1, and an integrated privacy shutter, it ensures seamless collaboration across modern meeting platforms.
Key Features & Highlights
- Dual-Camera AI System: Features both a 110° wide-angle lens and a 40° telephoto lens with 48MP CMOS sensors for full-room coverage and precision tracking.
- UHD 4K Video Quality: Delivers stunning 4K resolution at 30 fps with auto-focus and advanced AI participant framing.
- Pan, Tilt & Digital Zoom: Supports 3x digital zoom along with 70° motorized pan (-35° to 35°) and 40° tilt (-20° to 20°) adjustments.
- 14-Microphone Array with 33-Foot Range: Advanced beamforming mic array captures voice clearly up to 10.1 meters away with active echo and noise cancellation.
- High-Fidelity 20W Speaker: Powerful integrated 20W speaker delivers room-filling, clear audio for all meeting participants.
- Versatile A/V & Dual Display Outputs: Equipped with 1 x HDMI Input, 2 x HDMI Outputs for dual-screen setups, USB-C 3.0, 2 x USB-A ports, and RJ45 Ethernet.
- Wireless Connectivity & Privacy: Built-in Wi-Fi, Bluetooth 5.1, and a physical privacy shutter for secure and flexible meeting room management.
Detailed Product Specifications
1. Optical System & Video Performance
| Attribute | Specification Details |
|---|---|
| Brand / Manufacturer | Insta360 |
| Model Name | Connect Dual 4K Camera AI Video Bar |
| Image Sensors | Dual 1/3″-Type CMOS Sensors / 48 MP Resolution |
| Video Resolution & Frame Rate | UHD 4K (3840 × 2160) at up to 30 fps |
| Field of View (FOV) | Horizontal: 110° (Wide Lens) / 40° (Telephoto Lens) |
| Pan & Tilt Range | Pan: 70° (-35 to 35°) / Tilt: 40° (-20 to 20°) |
| Zoom & Focus Type | 3× Digital Zoom / Auto-Focus |
| Video Compression Protocols | H.264, H.265 |
| Privacy & Security | Integrated Physical Privacy Shutter |
2. Audio System & Hardware
| Attribute | Specification Details |
|---|---|
| Microphone Architecture | 14-Microphone Array |
| Voice Pickup Range | 33 Feet / 10.1 Meters |
| Audio Processing Technologies | AEC (Acoustic Echo Cancellation), ANC (Noise Cancellation) |
| Integrated Speaker Output | 1 × Built-in 20W Speaker |
3. Connectivity, Physical & Environmental Specs
| Attribute | Specification Details |
|---|---|
| Host Connection | 1 × USB-C 3.0 / 3.1 / 3.2 Gen 1 |
| A/V Ports | 1 × HDMI Input, 2 × HDMI Outputs |
| Expansion & Network Ports | 2 × USB-A, 1 × RJ45 Ethernet Port |
| Wireless Technologies | Wi-Fi Wireless / Bluetooth 5.1 |
| Power Input & Adapter | 12 VDC at 7 A (AC Adapter Powered) |
| Operating Temperature & Humidity | 32 to 104°F (0 to 40°C) / 0 to 90% Non-Condensing Humidity |
| Physical Dimensions (W x H x D) | 685.0 × 77.0 × 86.1 mm (27.0 × 3.0 × 3.4 inches) |
| Product Net Weight | 2.27 kg (5.0 lbs) |

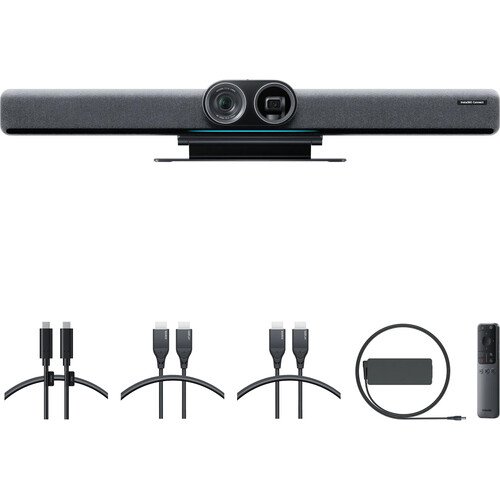

Package Contents
- 1 x Insta360 Connect Dual 4K Camera AI Video Bar
- 1 x Power Adapter & AC Power Cable
- 1 x USB-C Cable (1.8m / 6ft)
- 1 x Wall Mount Bracket & Hardware Kit
- 1 x Quick Start Guide
