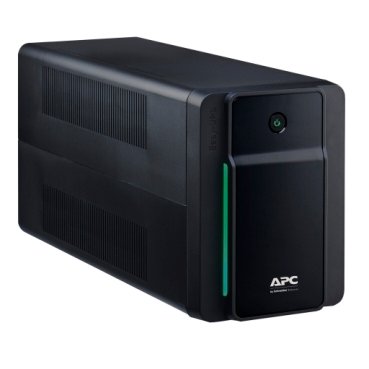

APC Easy UPS 2200VA (230V, AVR, 4 Schuko Outlets)
The APC Easy UPS 2200VA (1200W) delivers heavy-duty power protection engineered for high-demand devices in home offices and small business environments. Designed to maintain steady power supply for high-performance workstation PCs, networking gear, security hardware, and office peripherals, this high-capacity UPS shields your valuable equipment against blackouts, voltage drops, and severe power spikes.
Built with Line-Interactive topology and Automatic Voltage Regulation (AVR), it dynamically stabilizes high and low utility voltage levels without draining battery power. Featuring 4 Schuko CEE 7/3 outlets with complete battery backup and surge suppression, it guarantees maximum operational uptime when utility power fails.
Key Features & Highlights
- Automatic Voltage Regulation (AVR): Instantly corrects wide voltage fluctuations (140V–300V) without switching to internal battery power.
- High Load Capacity: 2200VA / 1200W rating supports heavy workstation loads, multiple desktop setups, and critical network gear.
- 4 Schuko Battery Outlets: All 4 CEE 7/3 outlets supply battery backup power alongside 273 Joules of surge protection.
- User-Replaceable Battery System: Compatible with dedicated replacement cartridges to restore original factory performance easily.
- LED Status Display & Audio Alarms: Clear visual indicators and audible alarms provide immediate alerts for power, overload, and battery status.

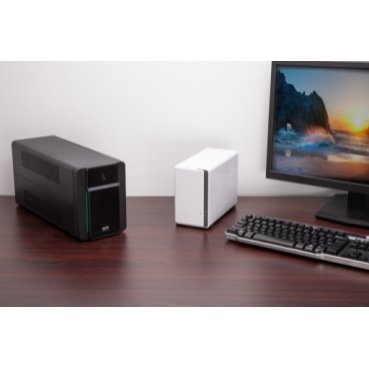

- Compact Tower Design: Space-efficient footprint designed for easy desktop or floor installation in home offices.
Detailed Product Specifications
1. Electrical Input & Output Performance
| Attribute | Specification Details |
|---|---|
| Brand / Line | APC Easy UPS |
| Output Power Capacity | 2200 VA / 1200 Watts |
| Output Waveform Type | Stepped Approximation to a Sinewave |
| Nominal Input / Output Voltage | 230V AC (Single Phase, 50/60 Hz +/- 5 Hz Auto-Sensing) |
| UPS Topology | Line Interactive |
| Input Connection Type | CEE 7/7 (1.2 m Cable Length) |
| Output Outlets | 4 × Schuko CEE 7/3 (Battery Backup + Surge) |
| Transfer Time | 6 ms typical (10 ms maximum) |
| Surge Energy Rating | 273 Joules |
2. Battery System & Physical Dimensions
| Attribute | Specification Details |
|---|---|
| Battery Type / Voltage | Sealed Lead-Acid Internal Battery (24V System, 9.0 Ah) |
| Full / Half Load Runtime | 1 Min (1200W) | 8.5 Mins (600W) |
| Typical Recharge Time | 8 Hours |
| Expected Battery Life | 2 to 3 Years (User Replaceable) |
| Product Weight | 12.2 kg (26.9 lbs) |
| Dimensions (H x W x D) | 190 mm x 140 mm x 390 mm (7.48″ x 5.51″ x 15.35″) |
| Color / Form Factor | Black / Compact Tower |
3. Environmental, Compliance & Packaging Specs
| Attribute | Specification Details |
|---|---|
| Operating Temperature / Humidity | 0 to 40 °C (32 to 104 °F) | 0 to 95% Non-Condensing |
| Acoustic Noise Level | 40 dBA |
| Product Certifications | CE, CB Certified | IP20 Rating |
| Standards Compliance | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2 |
| Shipping Weight & Dimensions | 13.2 kg | 29.7 cm H x 49.5 cm W x 23.5 cm L |
| Manufacturer Warranty | 2 Years Repair or Replace |
Package Contents
- 1 x APC Easy UPS 2200VA (BVX2200LI-GR)
- 1 x Integrated 1.2m CEE 7/7 Power Cord
- 1 x User Manual & Setup Documentation
