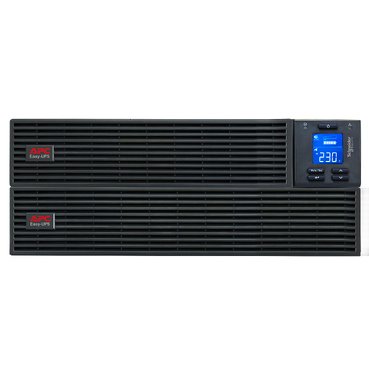

APC Easy UPS SRV RM 10000VA 230V 4U Rackmount UPS with External Battery Pack & RailKits
The APC Easy UPS SRV RM 10000VA 230V (10,000VA / 10,000W) is a high-performance 4U rackmount double-conversion online uninterruptible power supply bundle designed to deliver essential power protection and continuous uptime for critical IT infrastructure. Equipped with unity power factor (1.0 PF) and bundled with mounting rail kits (SRVRK1 and SRVRK2) along with an external battery pack system, this solution provides pure sine wave power to safeguard server rooms, edge data centers, telecom equipment, and healthcare technology against severe power disruptions.
Built for seamless rack integration, the system includes an intuitive multifunction LCD status and control console for direct operational management. The UPS utilizes robust Hardwire 3-wire (1P + N + E) input and output terminal connections, zero transfer time, and ultra-low output voltage harmonic distortion (1%). An integrated intelligent card slot supports optional Network Management Cards (AP9544, SRVSMB001, VGL9901I) for remote IP monitoring via EcoStruxure IT. Featuring automatic and manual internal bypass switches, it ensures uninterrupted power delivery to connected equipment even during internal faults.
Key Features & Technical Highlights

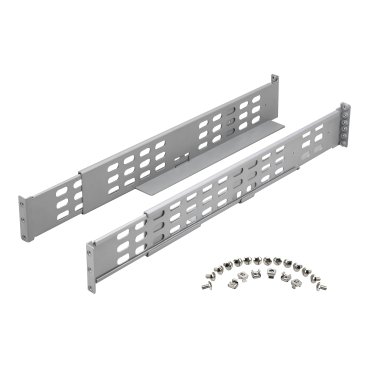

- 4U Rackmount Design with RailKits Included: Compact horizontal form factor bundled with dedicated SRVRK1 and SRVRK2 rack rail kits for secure installation into standard 19-inch IT racks.
- Unity Power Factor (1.0 PF): Delivers full 10,000 Watts / 10,000 VA active real power capacity to support modern high-density loads.
- On-Line Double Conversion Topology: Guarantees clean pure sine wave output, 1% total harmonic distortion (THD), and zero transfer time during utility power failures.
- External Battery Integration: Paired with an external 192V lead-acid battery pack system delivering 1599 VAh runtime capacity for reliable blackout protection.
- High Full-Load Efficiency: Operates at 94% efficiency under full load to lower power consumption and heat output (2128 Btu/h).
- Intelligent Network Card Slot: Compatible with optional Network Management Cards (AP9544, SRVSMB001, VGL9901I) for Web, SNMP, and cloud network management.
- Automatic & Manual Internal Bypass: Provides seamless utility power pass-through during internal error conditions or routine maintenance.
- 2-Year Comprehensive Warranty: Covered by a 24-month full manufacturer warranty from Schneider Electric for the UPS and battery system.
Detailed Product Specifications
1. Technical Overview & Electrical Performance
| Attribute | Specification Details |
|---|---|
| Brand / Product Range | APC / Schneider Electric (Easy UPS On-Line) |
| System Component Models | Includes SRVPM10KRI Power Module, External Battery Pack, SRVRK1 & SRVRK2 RailKits |
| UPS Topology | On-Line Double Conversion |
| Form Factor | 4U Rackmount (Horizontal Orientation) |
| Rated Power Capacity | 10,000 Watts (10 kW) / 10,000 VA (10 kVA) |
| Nominal Input / Output Voltage | 230V AC Single Phase (Configurable to 220V or 240V AC) |
| Input Voltage Window (Full / 60% Load) | 176…300 V (Full Load) | 110…300 V (60% Load) |
| Input Frequency Range | 40…70 Hz (Auto-Sensing) |
| Output Waveform & Distortion | Pure Sine Wave | 1% Total Harmonic Distortion (THD) |
| Full Load Efficiency | 94.0% Efficiency Rate |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Surge Energy Rating | 600 Joules |
2. Inputs, Outlets & Connectivity Interfaces
| Interface / Connection Type | Specification Details |
|---|---|
| AC Input Connection | 1 x Hardwire 3-Wire Terminal Block (1P + N + E) |
| AC Output Connection | 1 x Hardwire 3-Wire Terminal Block (1P + N + E) for 1 Zone |
| User Interface | Multifunction LCD Status and Control Console |
| Communication Ports | Serial Port, USB Port (Type-B Compatible) |
| Expansion Card Slot | 1 x Free Intelligent Slot (Supports AP9544, SRVSMB001, VGL9901I Cards) |
| Emergency Power Off (EPO) | Yes (Dedicated EPO Terminal Included) |
3. Battery System & Extended Runtime Specs
| Attribute | Specification Details |
|---|---|
| Battery Type | External Maintenance-Free Sealed Lead-Acid Battery System |
| Nominal Battery System Voltage | 192 V DC |
| Battery Energy Capacity | 1599 VAh Runtime Capacity |
| Battery Charging Power | 235 Watts Rated High-Speed Charger |
| Typical Recharge Time | 5 Hours |
| Expected Battery Lifetime | 3 to 5 Years |
4. Physical, Environmental & Packaging Specs
| Attribute | Specification Details |
|---|---|
| Rack Unit Height | 4U Rackmount |
| Dimensions (H x W x D) | 173 mm x 438 mm x 710 mm (6.81″ x 17.24″ x 27.95″) |
| Net System Weight | 68.0 kg (149.91 lbs) |
| Color / Finish | Black (RAL 7010) |
| Acoustic Noise Level | 58 dBA at 1 Meter |
| Heat Dissipation | 2128 Btu/hr |
| Operating Ambient Temperature | 0 to 40 °C (32 to 104 °F) | IP20 Protection Rating |
| Package Dimensions (H x W x L) | 48.5 cm x 83.6 cm x 60.0 cm (19.09″ x 32.91″ x 23.62″) |
| Package Total Weight | 79.0 kg (174.16 lbs) |
| Compliance Certifications | CE, UKCA, EAC, TISI | EN/IEC 62040-1, EN/IEC 62040-2 |
| Manufacturer Warranty | 24 Months (2 Years) Full Unit & Battery Warranty |
Package Contents
- 1 x APC Easy UPS SRV 10000VA 4U Power Module (SRVPM10KRI)
- 1 x External 192V Lead-Acid Battery Pack Unit
- 1 x SRVRK1 Rack Rail Kit
- 1 x SRVRK2 Rack Rail Kit
- 1 x External Battery Connection Cable
- 1 x USB Communication Cable
- 1 x RS-232 Serial Cable
- 1 x User Manual & Setup Guide
