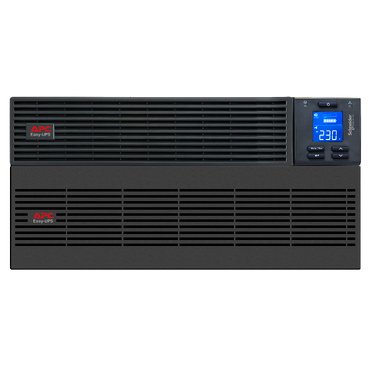

APC Easy UPS SRV RM 10000VA 230V Extended Runtime 5U Rackmount UPS with External Battery Support
The APC Easy UPS SRV RM 10000VA 230V Extended Runtime (10,000VA / 10,000W) is an enterprise-grade, 5U rack-mounted double-conversion online uninterruptible power supply engineered to protect mission-critical IT environments during unstable grid conditions and extended power outages. Delivering high power density with unity power factor (1.0 PF) and a high-capacity 1170W internal battery charger, this 5U rackmount solution easily integrates with external 240V battery enclosures to provide reliable, long-duration power continuity for server rooms, micro data centers, telecom networks, and edge computing racks.
Designed for standard rack deployment, the unit includes rack mounting brackets and features an intuitive multifunction LCD status and control console for real-time monitoring. The UPS utilizes robust Hardwire 3-wire (1P + N + E) input and output connections, zero transfer time technology, pure sine wave output, and ultra-low voltage harmonic distortion (1%). It comes equipped with a smart expansion slot compatible with optional Network Management Cards (AP9544, SRVSMB001, VGL9901I) for remote IP management and integration into EcoStruxure IT. Built-in automatic and manual internal bypass switches guarantee uninterrupted load power during routine maintenance or internal faults.
Key Features & Technical Highlights
- 5U Rackmount Form Factor: Space-saving horizontal rack design including rack-mounting kit for easy installation into standard 19-inch IT enclosures.
- Unity Power Factor (1.0 PF): Provides full 10,000 Watts / 10,000 VA real active power capacity for high-density rack equipment.
- Extended Runtime Ready: Built with a 240V DC external battery port and high-output 1170W charger to support extended backup battery packs.
- On-Line Double Conversion Topology: Guarantees clean pure sine wave power, 1% total harmonic distortion, and zero transfer time during blackout conditions.
- High Energy Efficiency: Delivers up to 94% full-load efficiency, optimizing energy consumption and lowering thermal emissions (2128 Btu/h).
- Intelligent Network Card Slot: Supports optional Network Management Cards (AP9544, SRVSMB001, VGL9901I) for SNMP, Web interface, and cloud monitoring.
- Automatic & Manual Internal Bypass: Ensures seamless power delivery to connected infrastructure even in the event of an internal error or fault.
- 2-Year Comprehensive Warranty: Covered by a full 24-month manufacturer warranty from Schneider Electric for complete piece of mind.
Detailed Product Specifications
1. Technical Overview & Electrical Performance
| Attribute | Specification Details |
|---|---|
| Brand / Product Range | APC / Schneider Electric (Easy UPS On-Line) |
| UPS Topology | On-Line Double Conversion |
| Form Factor | 5U Rackmount (Rack-Mounted Horizontal) |
| Rated Power Capacity | 10,000 Watts (10 kW) / 10,000 VA (10 kVA) |
| Nominal Input / Output Voltage | 230V AC Single Phase (Configurable to 220V or 240V AC) |
| Input Voltage Window (Full / 60% Load) | 176…300 V (Full Load) | 110…300 V (60% Load) |
| Input Frequency Range | 40…70 Hz (Auto-Sensing) |
| Output Waveform & Distortion | Pure Sine Wave | 1% Total Harmonic Distortion (THD) |
| Full Load Efficiency | 94.0% Efficiency Rate |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Surge Energy Rating | 600 Joules |
2. Inputs, Outlets & Connectivity Interfaces
| Interface / Connection Type | Specification Details |
|---|---|
| AC Input Connection | 1 x Hardwire 3-Wire Terminal Block (1P + N + E) |
| AC Output Connection | 1 x Hardwire 3-Wire Terminal Block (1P + N + E) for 1 Zone |
| User Interface | Multifunction LCD Status and Control Console |
| Communication Ports | Serial Port, USB Port (Type-B Compatible) |
| Expansion Card Slot | 1 x Free Intelligent Slot (Supports AP9544, SRVSMB001, VGL9901I Cards) |
| Emergency Power Off (EPO) | Yes (Dedicated EPO Terminal Included) |
3. Battery System & Extended Runtime Specs
| Attribute | Specification Details |
|---|---|
| Battery Type | External Maintenance-Free Sealed Lead-Acid Battery System |
| Nominal Battery System Voltage | 240 V DC |
| Battery Energy Capacity | 1512 VAh Runtime Capacity |
| Battery Charging Power | 1170 Watts Rated High-Speed Charger |
| Typical Recharge Time | 5 Hours |
| Expected Battery Lifetime | 3 to 5 Years |
| Extendable Runtime Support | Yes (Supports External Battery Packs) |
4. Physical, Environmental & Packaging Specs
| Attribute | Specification Details |
|---|---|
| Rack Unit Height | 5U Rackmount |
| Dimensions (H x W x D) | 219.5 mm x 438 mm x 615 mm (8.64″ x 17.24″ x 24.21″) |
| Net System Weight | 78.0 kg (171.96 lbs) |
| Color / Finish | Black (RAL 7010) |
| Acoustic Noise Level | 58 dBA at 1 Meter |
| Heat Dissipation | 2128 Btu/hr |
| Operating Ambient Temperature | 0 to 40 °C (32 to 104 °F) | IP20 Protection Rating |
| Package Dimensions (H x W x L) | 49.0 cm x 60.0 cm x 87.0 cm (19.29″ x 23.62″ x 34.25″) |
| Package Total Weight | 88.0 kg (194.0 lbs) |
| Compliance Certifications | CE, UKCA, EAC, TISI | EN/IEC 62040-1, EN/IEC 62040-2 |
| Manufacturer Warranty | 24 Months (2 Years) Full Unit & Battery Warranty |
Package Contents
- 1 x APC Easy UPS SRV 10000VA 5U Rackmount Power Unit
- 1 x External 240V Battery Pack Enclosure

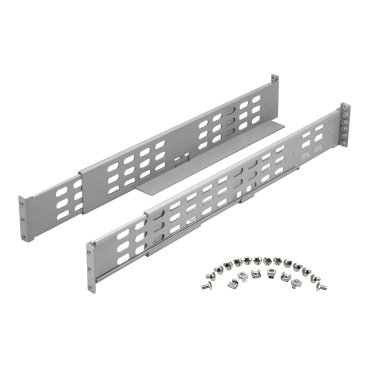

- 1 x Rack Mounting Kit & Support Brackets
- 1 x External Battery Connection Cable
- 1 x USB Cable
- 1 x RS-232 Serial Cable
- 1 x User Manual & Installation Guide
