APC Back-UPS 950VA (230V, AVR, 4 Schuko Sockets)
The APC Back-UPS 950VA (520W) provides essential power and surge protection for home networks, desktop workstations, gaming consoles, and office electronics. Designed to keep your critical devices running smoothly during unexpected power outages and dangerous voltage spikes, this reliable line-interactive UPS guards against data loss and equipment damage.
Featuring Automatic Voltage Regulation (AVR), it dynamically stabilizes wide voltage fluctuations (140V–300V) without switching to battery power, preserving internal battery capacity for true blackout emergencies. Equipped with 4 Schuko CEE 7/3 outlets delivering combined battery backup and surge protection, it ensures uninterrupted connectivity for essential gear.
Key Features & Highlights
- Automatic Voltage Regulation (AVR): Dynamically corrects voltage dips and surges to safe levels without depleting internal battery reserve.
- 520W Load Capacity: 950VA / 520W output capacity supports desktop PCs, Wi-Fi routers, gaming consoles, and office hardware.
- 4 Schuko Battery Outlets: All 4 CEE 7/3 outlets provide battery backup power combined with 273 Joules of surge suppression.
- LED Indicators & Audio Alarms: Intuitive visual status display and audible alerts provide immediate status updates on battery and utility power.
- Stepped Sine Wave Output: Reliable output waveform tailored for everyday home and business electronic equipment.
- Compact Tower Design: Space-saving vertical form factor fits neatly under desks or adjacent to workstations.
Detailed Product Specifications
1. Electrical Input & Output Performance
| Attribute | Specification Details |
|---|---|
| Brand / Line | APC Back-UPS |
| Model Code | BX950MI-GR |
| Output Power Capacity | 950 VA / 520 Watts |
| Output Waveform Type | Stepped Approximation to a Sinewave |
| Nominal Input / Output Voltage | 230V AC (Single Phase, 50/60 Hz +/- 5 Hz Auto-Sensing) |
| UPS Topology | Line Interactive |
| Input Connection Type | CEE 7/7 (1.2 m Cable Length) |

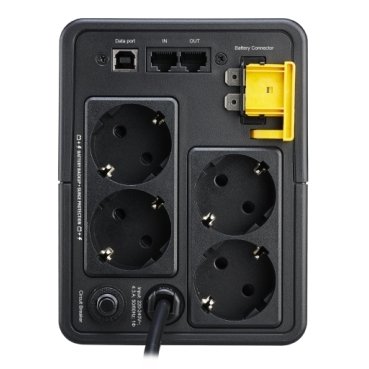

| Output Outlets | 4 × Schuko CEE 7/3 (Battery Backup + Surge) |
| Transfer Time | 6 ms typical (10 ms maximum) |
| Surge Energy Rating | 273 Joules |
2. Battery System & Physical Dimensions
| Attribute | Specification Details |
|---|---|
| Battery Type / Voltage | Sealed Lead-Acid Internal Battery (12V System, 9.0 Ah) |
| Full / Half Load Runtime | 1 Min (480W) | 6.5 Mins (240W) |
| Typical Recharge Time | 8 Hours |
| Expected Battery Life | 3 to 5 Years |
| Product Weight | 6.1 kg (13.45 lbs) |
| Dimensions (H x W x D) | 160 mm x 120 mm x 355 mm (6.3″ x 4.72″ x 13.98″) |
| Color / Form Factor | Black / Vertical Tower |
3. Environmental, Compliance & Packaging Specs
| Attribute | Specification Details |
|---|---|
| Operating Temperature / Humidity | 0 to 40 °C (32 to 104 °F) | 0 to 95% Non-Condensing |
| Acoustic Noise Level | 40 dBA |
| Product Certifications | CE, CB, EAC Certified | IP20 Rating |
| Standards Compliance | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2 |
| Shipping Weight & Dimensions | 6.6 kg | 25.0 cm H x 43.0 cm W x 19.7 cm L |
| Manufacturer Warranty | 2 Years Repair or Replace |
Package Contents
- 1 x APC Back-UPS 950VA (BX950MI-GR)
- 1 x Integrated 1.2m CEE 7/7 Power Cord
- 1 x User Manual & Setup Documentation
