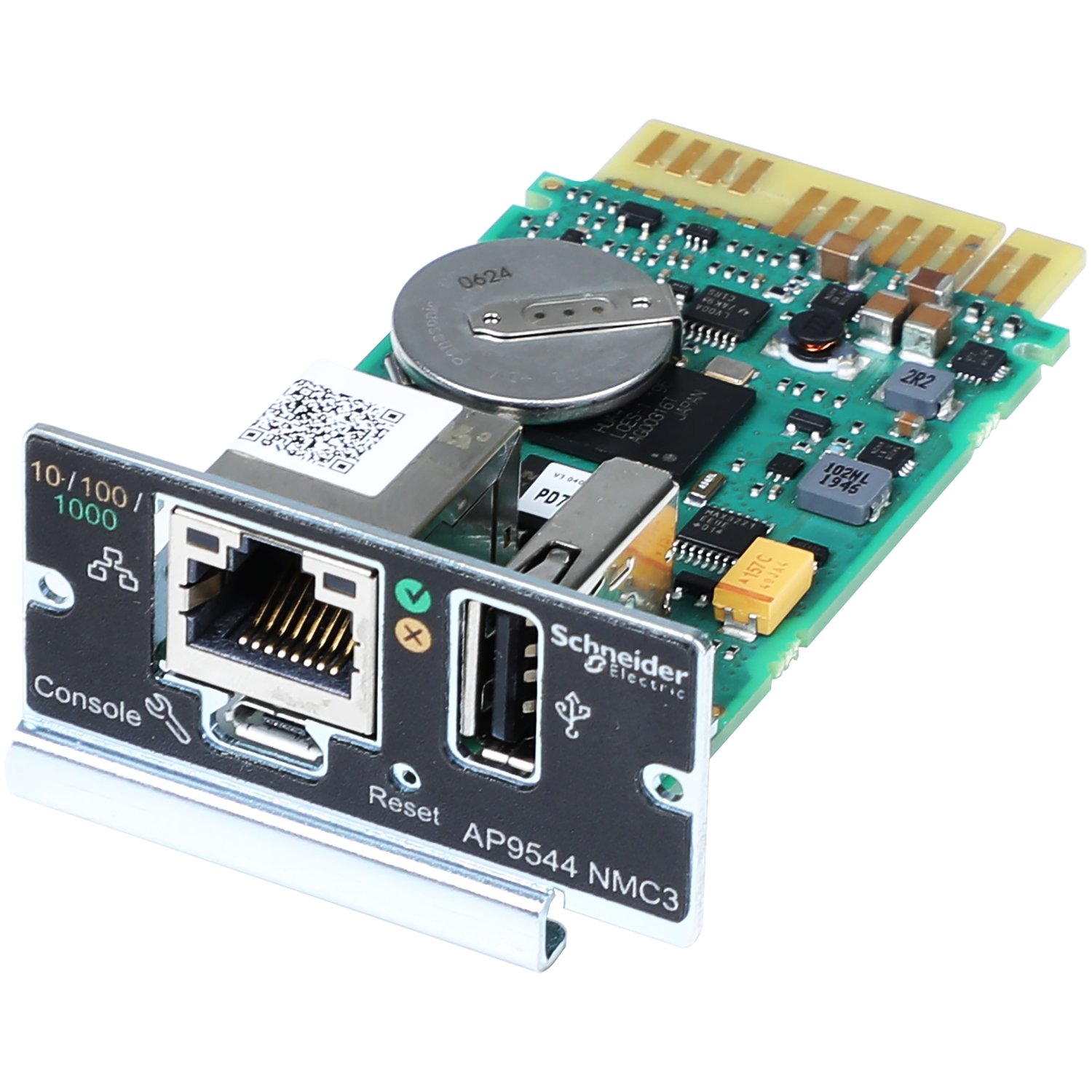

Network Management Card for Easy UPS 1-Phase (AP9544)
The Network Management Card for Easy UPS 1-Phase (AP9544) enables secure, real-time remote monitoring and control of single-phase Easy UPS On-Line systems. Accessible via a user-friendly web browser interface, EcoStruxureâ„¢ IT software, or any SNMP-enabled network management platform, this network card delivers comprehensive power administration to safeguard critical IT infrastructure against downtime.
Included with the purchase is a 12-month Secure NMC Subscription (requires firmware v2.5 or later), giving customers access to future firmware updates, security patches, and functional enhancements to maintain optimal network defense and operational efficiency.
Key Features & Highlights
- Remote Monitoring & Control: Manage single-phase Easy UPS units remotely using HTTPS, SSH, SNMP, or EcoStruxure IT platforms.
- Gigabit Ethernet Connectivity: High-speed 10/100/1000BASE-T network architecture for fast data throughput and seamless integration.
- Secure Access Authentication: Built-in RADIUS support alongside secure protocols (HTTPS, SSH) guarantees enterprise-level management safety.
- Includes 12-Month Secure NMC Subscription: Provides immediate access to security maintenance and ongoing firmware updates upon installation.
- Ultra-Compact Form Factor: Extremely lightweight and compact slot-in card design engineered specifically for Easy UPS On-Line series.
- Environmental Resilience: Tested and certified to operate reliably across broad operating temperatures (-5 to 45 °C) and humidity levels up to 95%.
Detailed Product Specifications
1. Core Characteristics & Compatibility
| Attribute | Specification Details |
|---|---|
| Product / Component Type | Device Monitoring and Management Card |
| Model Part Number | AP9544 |
| Product Range Compatibility | Easy UPS On-Line, Easy UPS 1 Ph On-Line |
| Number of Input Phases | 1-Phase |
| Communication Network Speed | 10 / 100 / 1000BASE-T (Gigabit) |
| Authentication Protocol | RADIUS Authentication |
| Communication Protocols Supported | HTTPS, HTTP, SSH, FTP, SNMP, DHCP, BOOTP, TCP/IP |
2. Physical Dimensions & Environmental Limits
| Attribute | Specification Details |
|---|---|
| Unit Weight | 0.05 kg (0.11 lbs) |
| Unit Dimensions (H x W x D) | 4.4 cm x 5.2 cm x 8.0 cm |
| Operating Ambient Temperature | -5 °C to 45 °C |
| Storage Ambient Temperature | -15 °C to 65 °C |
| Operating Relative Humidity | 0 to 95 % (Non-condensing) |
| Operating Elevation Altitude | 0 to 10,000 ft (0 to 3,048 m) |
3. Package & Shipping Specifications
| Attribute | Specification Details |
|---|---|
| Package 1 Dimensions (H x W x L) | 4.60 cm x 16.50 cm x 23.00 cm |
| Package 1 Total Weight | 302.0 g (0.67 lbs) |
| Package 2 Dimensions (H x W x L) | 68.00 cm x 60.00 cm x 80.00 cm (44 Units) |
| Package 2 Total Weight | 21.0 kg (46.3 lbs) |
| Standards Compliance | CISPR 32, VCCI Class A, ICES-003, EN 55024, EN 61000 series |
| Certifications & Warranty | FCC Class A, AS/NZS, UK PSTI | 2 Years Repair or Replace |
Package Contents
- 1 x APC Network Management Card (AP9544) for Easy UPS 1-Phase
- 1 x Micro-USB Cable
- 1 x Installation Manual & Documentation
