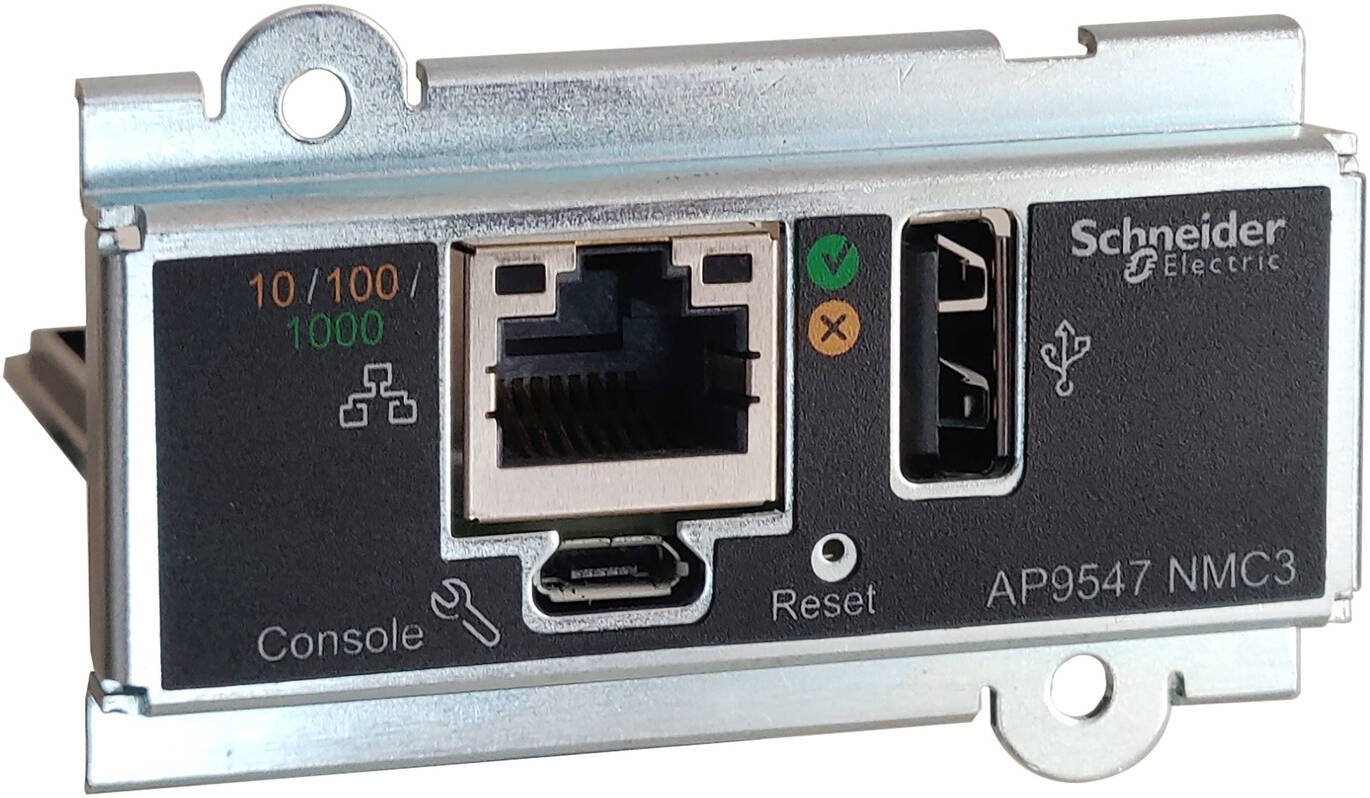

Schneider Electric Network Management Card 3 for Easy UPS 3-Phase (AP9547)
The Schneider Electric Network Management Card 3 for Easy UPS 3-Phase (AP9547) delivers mission-critical, secure remote monitoring and management for Easy UPS 3 Series systems (3S, 3M, 3L, 3S Pro, and Galaxy systems). Powered by a high-speed processor with Gigabit Ethernet (10/100/1000BASE-T) connectivity, it supports simultaneous multiple user logins via an intuitive Web UI or Command Line Interface (CLI).
Designed for maximum operational resiliency and enterprise security, this card features advanced event logging, proactive data collection, and support for PowerChute Network Shutdown to execute graceful shutdowns, unattended startups, and VM migrations during power events. It also includes a 1-year Secure NMC Subscription to ensure seamless access to the latest security compliance and firmware upgrades.
Key Features & Highlights
- Gigabit Ethernet Connectivity: High-speed 10/100/1000BASE-T interface provides fast, responsive network monitoring and multi-user UI access.
- Broad 3-Phase Compatibility: Designed specifically for Easy UPS 3S, 3M, 3L, 3S Pro, Galaxy PW 2nd Gen, and Galaxy 3L power systems.
- Enterprise Disaster Avoidance: Integrates with PowerChute Network Shutdown for graceful automated server shutdown and VM migration options.
- EcoStruxure IT Ready: Connects seamlessly with EcoStruxure IT and SNMP-enabled network systems for centralized management.
- Advanced Network Security: Supports RADIUS authentication along with secure encryption protocols including HTTPS, SSH, and SNMP.
- 1-Year Secure NMC Subscription Included: Ensures full access to the latest security patches, system updates, and software features.
Detailed Product Specifications
1. Core System & Compatibility Architecture
| Attribute | Specification Details |
|---|---|
| Brand / Manufacturer | Schneider Electric / APC |
| Model Part Number | AP9547 |
| Product Type | Network Management Card 3 / Device Monitoring & Management |
| UPS Compatibility Range | Easy UPS 3S, 3M, 3L, 3S Pro, Galaxy PW 2nd Gen |
| Number of Input Phases | 3-Phase Systems |
| Network Connectivity | 10 / 100 / 1000BASE-T (Gigabit Ethernet) |
| Authentication & Security | RADIUS Authentication |
| Supported Protocols | HTTPS, SSH, FTP, HTTP, SNMP, DHCP, BOOTP, TCP/IP |
2. Physical & Environmental Specifications
| Attribute | Specification Details |
|---|---|
| Net Product Weight | 0.05 kg (0.11 lbs) |
| Product Dimensions (W x H x D) | 5.2 cm x 4.4 cm x 8.0 cm |
| Operating Temperature Range | -15 °C to 65 °C |
| Storage Temperature Range | -15 °C to 65 °C |
| Operating Relative Humidity | 0 to 95% (Non-condensing) |
| Operating Altitude | 0 to 10,000 ft (0 to 3,048 m) |
3. Packaging & Compliance Details
| Attribute | Specification Details |
|---|---|
| Shipping Weight | 0.31 kg |
| Shipping Package Dimensions | 16.50 cm x 24.00 cm x 5.00 cm |
| Date First Available | October 10, 2025 |
| Regulatory Standards | CISPR 32, VCCI Class A, ICES-003, EN 55024, EN 61000 series, EN/IEC 62040-2 |
| Product Certifications | FCC Class A, AS/NZS |
Package Contents

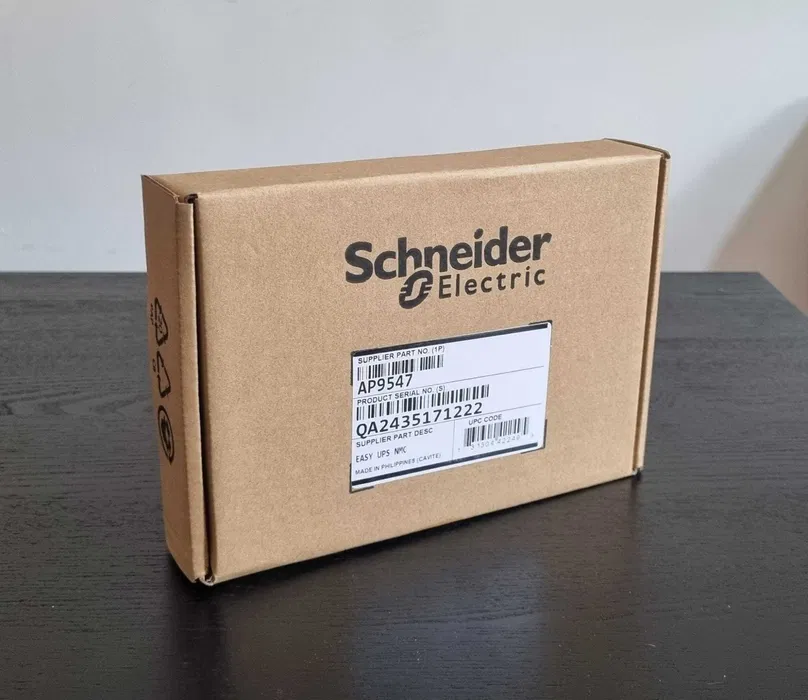

- 1 x Schneider Electric AP9547 Network Management Card 3
- 1 x Micro-USB Cable
- 1 x Installation Manual & Setup Documentation
